Foldback electric cylinder

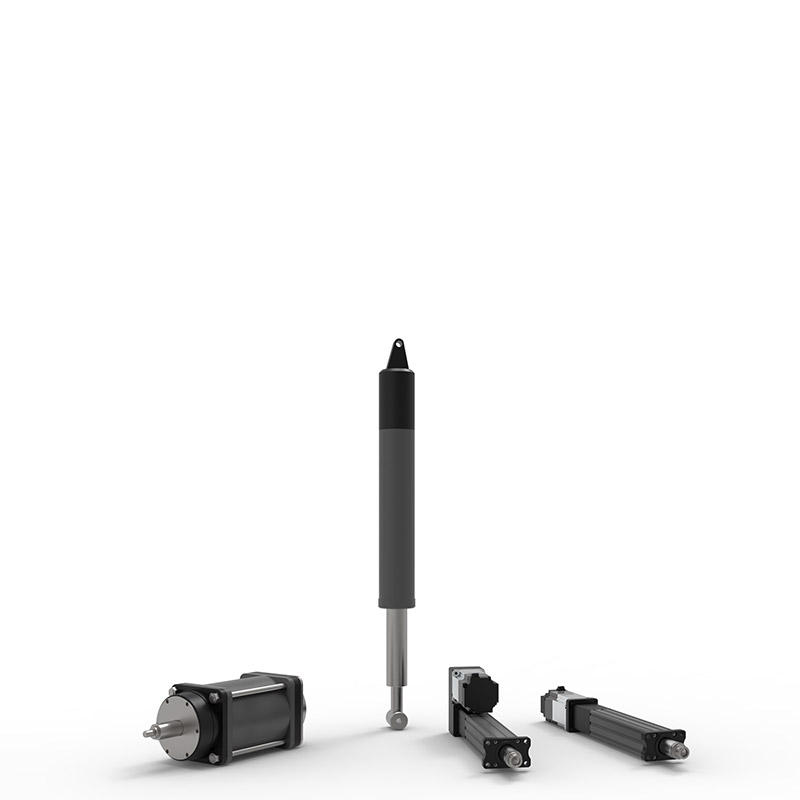

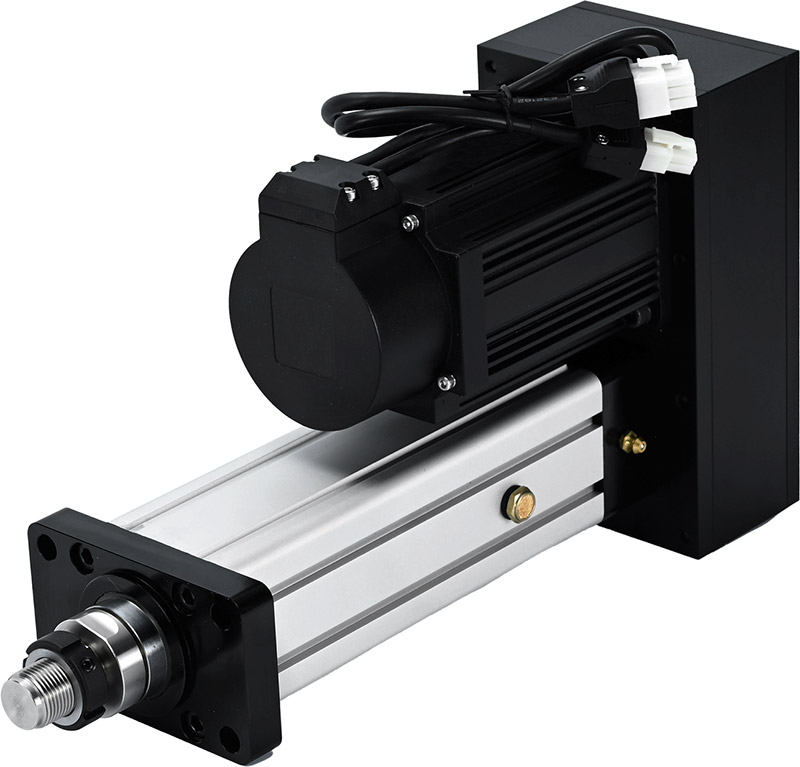

Basic Introduction

The synchronous belt selected by the returnable electric cylinder has the characteristics of strong expansion, high strength, small gap and long life, so that the whole electric cylinder has high control and control accuracy. The servo motor is flexible with the electric cylinder, easy to install, simple to set, easy to use, and because of its overall length is short, suitable for the installation position is relatively small occasions.

Advantages and characteristics

Compact structure, small size, easy installation and use, simple maintenance, low noise, long life, multiple safety protection measures.
Accurate position control, repeated positioning accuracy up to 0.01mm, increase the external displacement sensor up to 0.002mm.
Accurate speed control, you can arbitrarily set the speed waveform, to achieve high-speed smooth and impact-free operation, control accuracy up to 0.05%.
Accurate thrust control, the control accuracy can reach 0.5% after increasing the external push and pull sensor.
Can use trapezoidal screw, ball screw, planetary ball screw transmission mode.
Can use servo motor, stepper motor, DC motor, AC motor drive mode, servo and frequency control.

Description

Description

Technical Parameter
Product series	Cylinder bore	Thrust	Stroke mm	Speed mm/s	Diameter of lead screw	Diameter of push rod	Reductor		Motor
WSE40	φ30	≤50KG	≤300	≤250	φ12	φ20	No		40 frame	42 step
WSE50	φ40	≤150KG	≤600	≤500	φ12	φ25	No		60 frame	57 step
WSE60	φ50	≤300KG	≤600	≤500	φ16	φ35	60 frame		60 frame/80 frame	86 step
WSE75	φ63	≤800KG	≤80C	≤500	φ20	φ45	85 frame	90 frame	80 frame	86 step
WSE80	φ65	≤2T	≤800	≤500	φ25	φ50	85 frame	90 frame	90 frame	130 frame
WSE94	φ80	≤3T	≤1200	≤500	φ32	φ60	85 frame	90 frame	90 frame	130 frame
WSE110	φ100	≤5T	≤1500	≤500	φ40	φ75	115 frame	142 frame	130 frame	180 frame
WSE134	φ120	≤8T	≤1500	≤500	φ50	φ90	115 frame	142 frame	130 frame	180 frame
WSE140	φ110	≤13T	≤1500	≤500	φ50	φ90	142 frame		Standard input
WSE170	φ140	≤20T	≤1800	≤500	φ63	φ100	142 frame
WSE180	φ160	≤15T	≤1800	≤500	φ63	φ110	142 frame	80 frame
WSE195	φ160	≤25T	≤1800	≤500	φ63	φ120	180 frame
WSE220	φ180	≤30T	≤1800	≤500	φ80	φ150	180 frame	220 frame
WSE245	φ180	≤40T	≤2200	≤500	φ80	φ140	220 frame
WSE300	φ220	≤60T	≤2200	≤500	φ100	φ160	220 frame

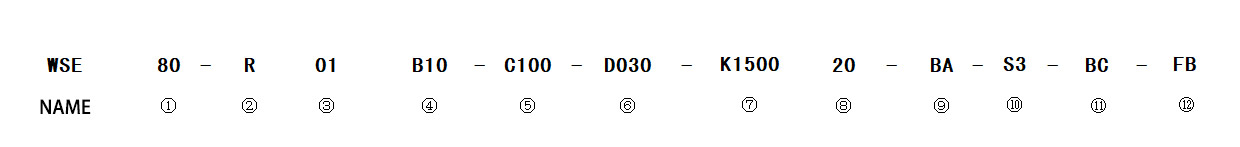

①		②		③		④		⑤		⑥
Code	Series	Code	Structure	Code	Installation	Code	Screw lead	Code	Effective Stroke	Code	Speed Ratio
40	40 Series	L	Rectilinear	01	Front Flange	B04	4mm	C50	50mm	D005	1:2
50	50 Series	R	Reentrant	02	Rear Flange	B05	5mm	C100	100mm	D010	1:1
60	60 Series			03	Trunnion	B10	10mm	C150	150mm	D015	1.5:1
75	75 Series			04	Horizontal	B16	16mm	C200	200mm	D020	2:1
80	80 Series			05	Back Hinge	B20	20mm	C250	250mm	D030	3:1
94	94 Series			06	Guidepost	B25	25mm	C300	300mm	D040	4:1
110	110 Series			07	Forelock	…	…	…	…	D050	5:1
…	…									D100	10:1
										…	…

⑦		⑧		⑨		⑩		⑪
Code	Power	Code	Speed	Code	Load Connection Type	Code	Sensor	Code	Motor Lock
K50	50W	10	1000rpm	FM	Male thread	S0	No Sensor	B	No Lock
K100	100W	15	1500rpm	BA	Internal thread	S1	1个	BC	Lock
K200	200W	20	2000rpm	P	fisheye	S2	2个	⑫
K400	400W	25	2500rpm	Y	Y-joint	S3	3个	Code	Dimension Standard
K750	750W	30	3000rpm	I	I-joint	…	…	B	Standard
K1000	1kW	…	…	WX	Universal joint			FB	Non-standard
K1500	1.5kW			FL	Flange end
K2000	2kW			FD	Floating joint
K3000	3kW			TS	Special non-standard
…	…
