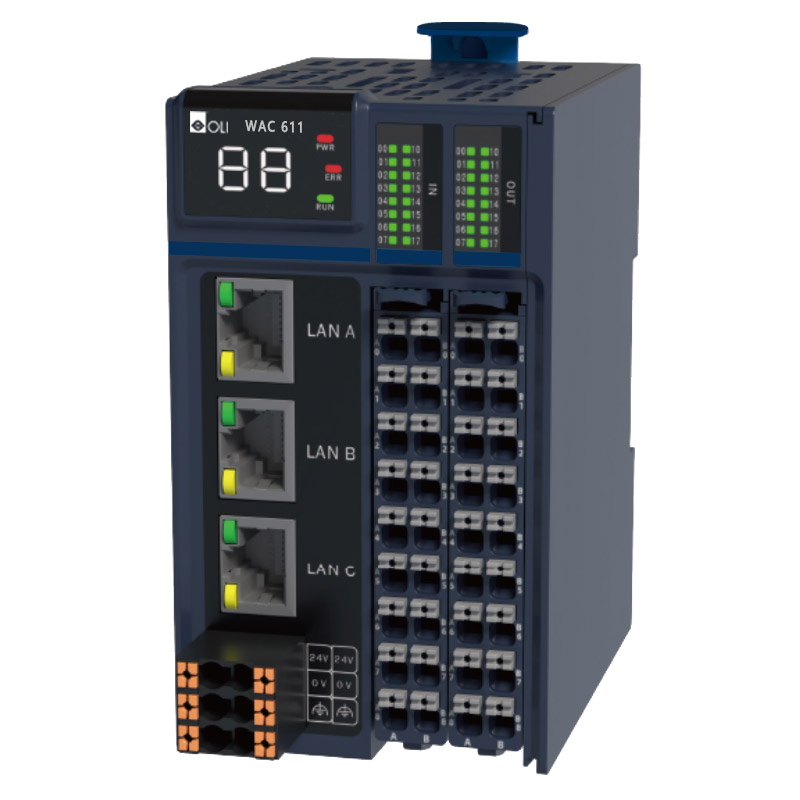

WAC600
Basic Introduction
Small and medium-sized PLC & PAC,to meet the application needs of logic control, sequence control, process control, motion control, edge intelligence and other industrial control scenarios. It has been widely used in transportation, logistics, chemical industry, new energy, machinery, high-end equipment manufacturing and other fields, and can provide personalized solutions for the automation field.
Advantages and characteristics
1、Support six languages based on IEC61131-3 programming standards (LD, FBD, IL, ST, SFC, CFC).
2、Equipped with self-developed standard backplane bus, the host support up to 16 IO expansion, support up to 127 remote rack expansion.
3、4 pulse shafts, 32EtherCAT shafts, 4 pulse shafts +32 ETHERCAT shafts, 64EtherCAT shafts, 4 pulse shafts +64 ETHERCAT shafts are available in a variety of configurations, supporting up to 500us cycle 8-axis synchronization.
4、High-speed counting channel counting maximum frequency of up to 800Kpps (two-phase 4x frequency) /200kHz (single input), high-speed pulse output channel output maximum frequency up to 200kHz.
5、The use of DC distributed clock synchronization, to achieve synchronous control of the shaft, support synchronous position mode, synchronous speed mode, synchronous torque mode and zero mode.
6、Support PTP control, electronic CAM (arrow, rotary cutting, chasing, following, synchronization), electronic gear, linear/arc / 3-axis spiral interpolation, CNC (support G code), robots (Delta, SCARA, Portal, Tripod, gantry, Bipod and 4-axis palletizing, 6-axis free joint robot).
