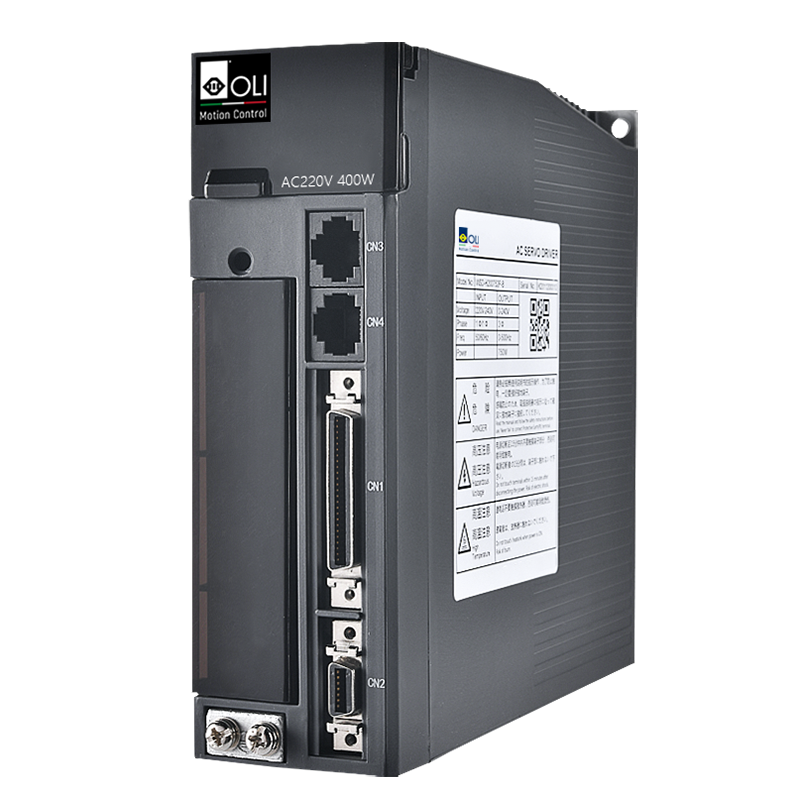

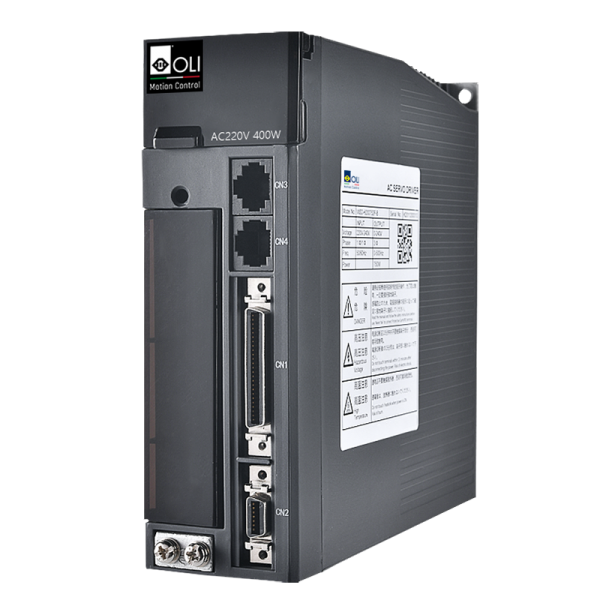

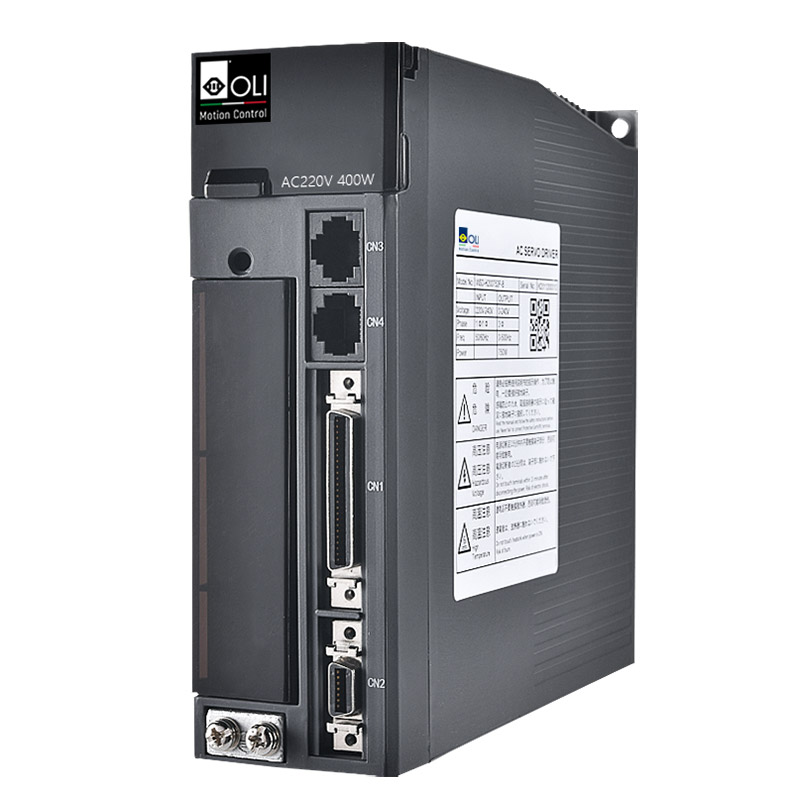

WSD-H Series Pulse Servo

Basic Introduction

The WSD series servo products including AC200-240V/AC380-480V,the power range is from 50W to 30kW.With position,speed torque,full closed-loop and E-CAT control style etc.

Advantages and characteristics

The structure of WSD series servo is compact and easy to install
With pisition,speed,torque,full closed-loop and E-CAT control style etc.
Multiple encoder configurations, including optoelectronic encoders, magnetic encoders etc;
Powerful upper computer functions
With excellent function such as automatic gain adjustment,gain
switching,torque,compensation,vibration suppression,and feedforward control,debugging is simple and fast

Description

Tech. Specification
Model WSD-
H200052* H200102* H200202* H200402* H200752* H201002* H201503* H202003* H203003*
Rated power(W) 50 100 200 400 750 1000 1500 2000 3000
Rated current(A) 0.9 1.1 1.9 3.0 4.5 6.6 9.7 11.4 17.4
Max current(A) 2.7 3.3 5.7 9.0 13.5 19.8 29.1 34.2 52.2
Power supply Single phase AC 220V,-15%~+10%,50/60Hz Single/Three phase AC 220V,-15%~+10%,50/60Hz
Control supply Single phase AC 220V,-15%~+10%,50/60Hz
Braking resistor None  Internal

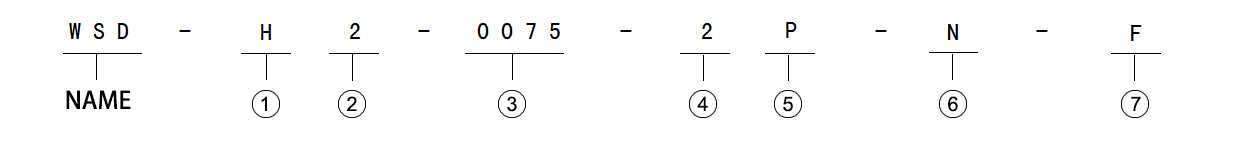

Code Series Code Adaptive motor power Code Voltage Code Type Code Encoder Code Special
H H 0005 5*10W 2 1-AC220V P Pulse N Nikon F Closed-loop
B B 0010 10*10W 3 3-AC220V E EtherCAT T Tamag awa S STO
G G 0020 20*10W 4 3-AC380V C CAN R Resolver FS Closed-loop+STO
0040 40*10W 0 DC24V
Code Version 0075 75*10W A DC48V
1 1 0100 100*10W B DC72V
2 2 0150 150*10W
3 3
