WT-C0070

Basic Introduction

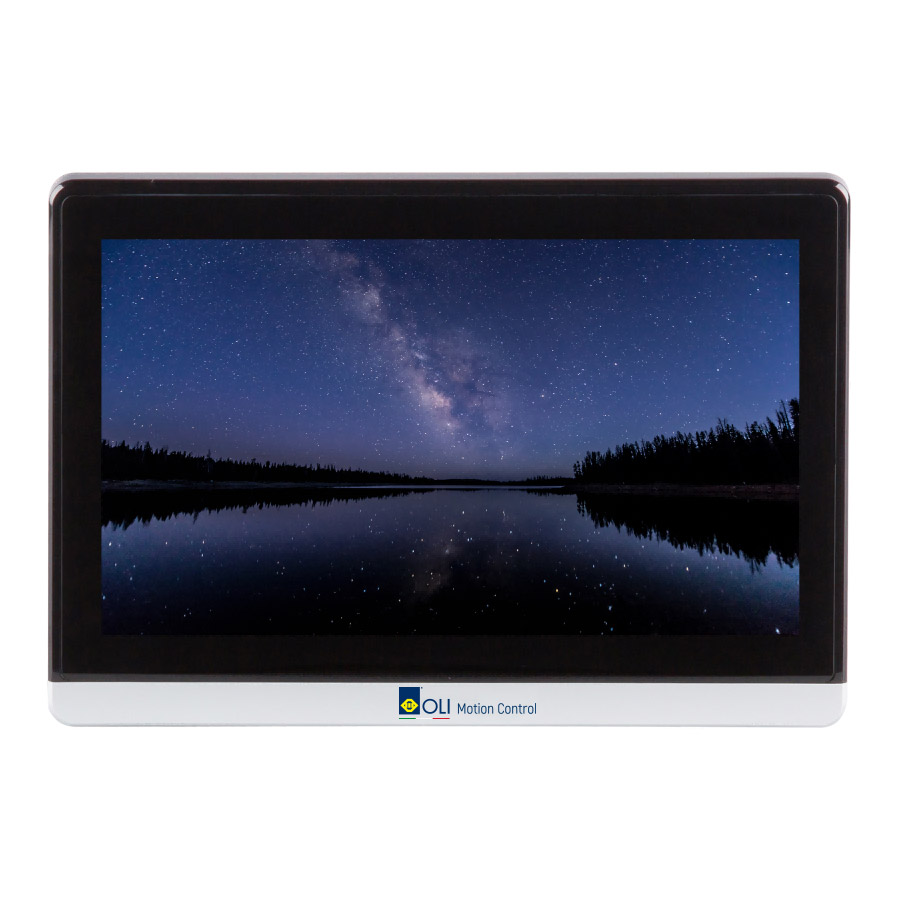

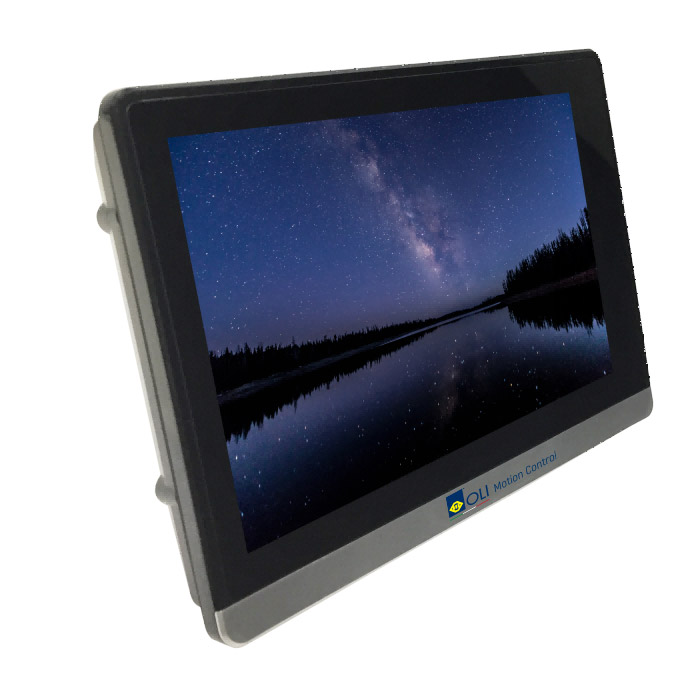

WT-C0070 capacitive touch screen, which have 7 inch touch screen, HD high brightness and full viewing Angle, high performance CPU, large capacity memory,and 1 Ethernet port. It support multi-point gesture, for providing a touch and control solution with more higher appearance and more smooth.

Advantages and characteristics

1.Multi-point capacitive touch screen, anti-scratch, no drift
2.The main board three anti-paint treatment, adapt to a variety of harsh environment
3.Say goodbye to fasteners, convenient installation
4.Four serial ports, with Ethernet, more powerful expansion ability
5.New configuration software, rich library, powerful functions

Description

Item Parameter
Display 7 “16:9 TFT LCD screen, wide viewing Angle
Resolution 1024×600
Color 24 bit
Luminance 450 cd/m²
Backlight LED
LCD lifetime 50000 hours
Touch Screen Glass+Glass Projective multi-point capacitive touch screen
CPU 600MHz ARM Cortex-A8
Memorizer 128M Flash + 128M DDR3
RTC Real-time clock built-in
Ethernet 10M/100M adaptive
SD Card Support

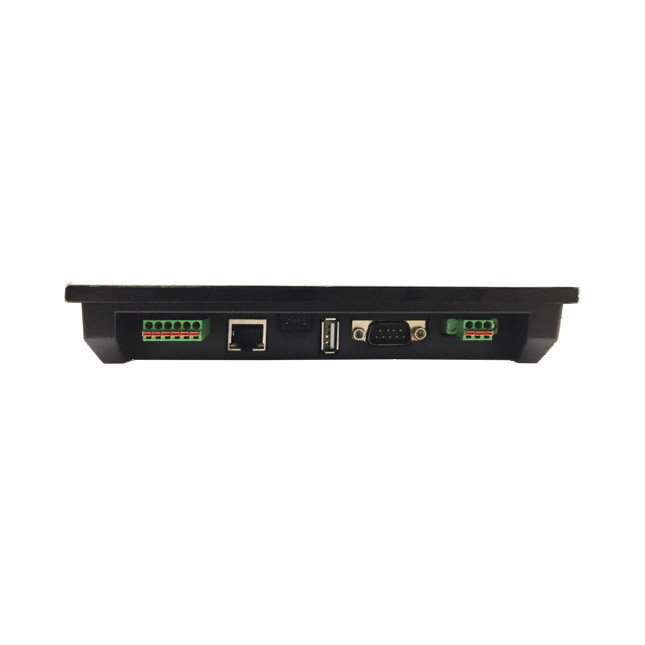

USB Port One USB Slave 2.0 port; One USB Host 2.0 port
Program Download Mode USB slave port/USB flash drive/Ethernet
Serial communication Port COM1:RS232/RS485/RS422;
COM2/COM4:RS485;
COM3:RS232
LCD viewing Angle(T/B/L/R) 70’/75’/75’/75′

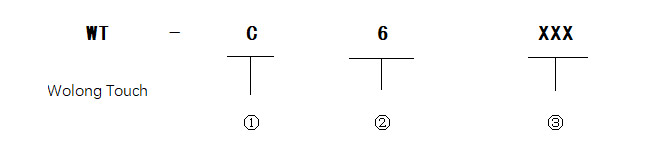

Code Type Code Product Series Code Screen Size
C Capacitive 0 0 series 070 7 inch
R Resistance 6 6000 series 100 9.7 inch/10.1 inch
156 15.6 inch
