描述
| 技术规范 Tech. Specification | |||||||||
| 型号 Model |
WSD- | ||||||||
| H200052* | H200102* | H200202* | H200402* | H200752* | H201002* | H201503* | H202003* | H203003* | |
| 额定功率W Rated power |
50 | 100 | 200 | 400 | 750 | 1000 | 1500 | 2000 | 3000 |
| 额定电流A Rated current |
0.9 | 1.1 | 1.9 | 3.0 | 4.5 | 6.6 | 9.7 | 11.4 | 17.4 |
| 瞬时最大电流A Max current |
2.7 | 3.3 | 5.7 | 9.0 | 13.5 | 19.8 | 29.1 | 34.2 | 52.2 |
| 主电路电源 Power supply |
单相AC 220V,-15%~+10%,50/60Hz Single phase AC 220V,-15%~+10%,50/60Hz |
单相/三相AC 220V,-15%~+10%,50/60Hz Single/Three phase AC 220V,-15%~+10%,50/60Hz |
|||||||
| 控制电路电源 Control supply |
单相AC 220V,-15%~+10%,50/60Hz Single phase AC 220V,-15%~+10%,50/60Hz |
||||||||
| 制动电阻 Braking resistor |
无 None | 内置 Internal | |||||||

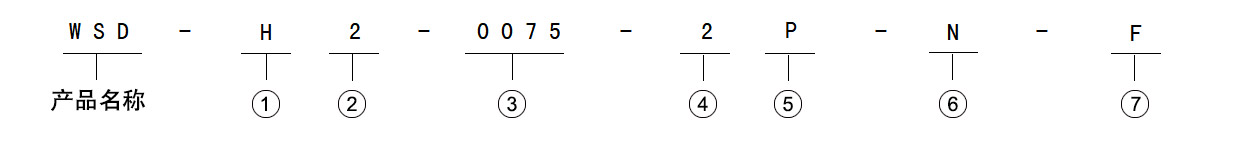

| ① | ③ | ④ | ⑤ | ⑥ | ⑦ | ||||||
| 代号 Code |
产品系列 Series |
代号 Code |
适配的电机功率 Adaptive motor power |
代号 Code |
电源电压 Voltage |
代号 Code |
机种Type | 代号Code | 编码器类型 Encoder |
代号Code | 特殊规格 Special |
| H | H | 0005 | 5*10W | 2 | 1-AC220V | P | 脉冲型 Pulse |
N | Nikon | F | 全闭环/C.L Closed-loop |
| B | B | 0010 | 10*10W | 3 | 3-AC220V | E | 总线型EtherCAT | T | Tamag awa | S | STO |
| G | G | 0020 | 20*10W | 4 | 3-AC380V | C | 总线型 CAN |
R | 旋变 Resolver |
FS | 全闭环+STO Closed-loop+STO |
| ② | 0040 | 40*10W | 0 | DC24V | … | … | … | … | |||
| 代号 Code |
版本 Version |
0075 | 75*10W | A | DC48V | ||||||
| 1 | 1 | 0100 | 100*10W | B | DC72V | ||||||
| 2 | 2 | 0150 | 150*10W | ||||||||
| 3 | 3 | … | … | ||||||||
| … | … | ||||||||||
